Hantek 6074BC 4 Channel 70MHz Sampling Rate 1GS/S
Hantek 6074BC เป็นออสซิลโลสโคปดิจิตอลแบบพกพา ที่มาพร้อมกับ 4 ช่องสัญญาณอะนาล็อก รองรับ แบนด์วิดท์ 70MHz และ อัตราการสุ่มตัวอย่างแบบเรียลไทม์สูงถึง 1GSa/s ซึ่งให้ประสิทธิภาพที่ดียิ่งกว่ารุ่นตั้งโต๊ะ ใช้งานง่ายผ่าน USB 2.0 Plug & Play โดยไม่ต้องใช้แหล่งจ่ายไฟภายนอก ตัวเครื่องออกแบบให้มีขนาดกะทัดรัดเหมาะสำหรับการพกพา
คุณสมบัติเด่น
✅ ประสิทธิภาพเหนือกว่าออสซิลโลสโคปแบบตั้งโต๊ะ
✅ แบนด์วิดท์ 70MHz และอัตราสุ่มตัวอย่าง 1GSa/s รองรับการวัดสัญญาณความถี่สูง
✅ Pass/Fail Test และ ฟังก์ชันทริกเกอร์ที่หลากหลาย รองรับการวิเคราะห์ข้อมูลอย่างแม่นยำ
✅ บันทึกและเล่นซ้ำคลื่นสัญญาณ เพื่อการตรวจสอบย้อนหลัง
✅ ดีไซน์พกพา ขนาดเล็ก น้ำหนักเบา ผลิตจากอะลูมิเนียมอโนไดซ์ แข็งแรง ทนความร้อน และการสึกหรอ
✅ รองรับการใช้งานบน Windows 7, 8 และ 10
✅ ส่งออกข้อมูลคลื่นสัญญาณในรูปแบบ Excel, BMP, JPG ได้อย่างง่ายดาย
✅ ฟังก์ชันการวัดอัตโนมัติ มากกว่า 20 แบบ
✅ รองรับการถอดรหัสข้อมูลบัส Serial Bus และแสดงข้อมูลในรูปแบบตาราง
✅ วิเคราะห์สัญญาณ FFT Spectrum Analyzer
✅ รองรับการพัฒนาเพิ่มเติมผ่าน DLL และตัวอย่างโค้ดสำหรับ LabView, VB, VC
✅ รองรับการเชื่อมต่อออสซิลโลสโคปหลายตัวเข้ากับคอมพิวเตอร์เครื่องเดียว เพื่อเพิ่มจำนวนช่องสัญญาณ

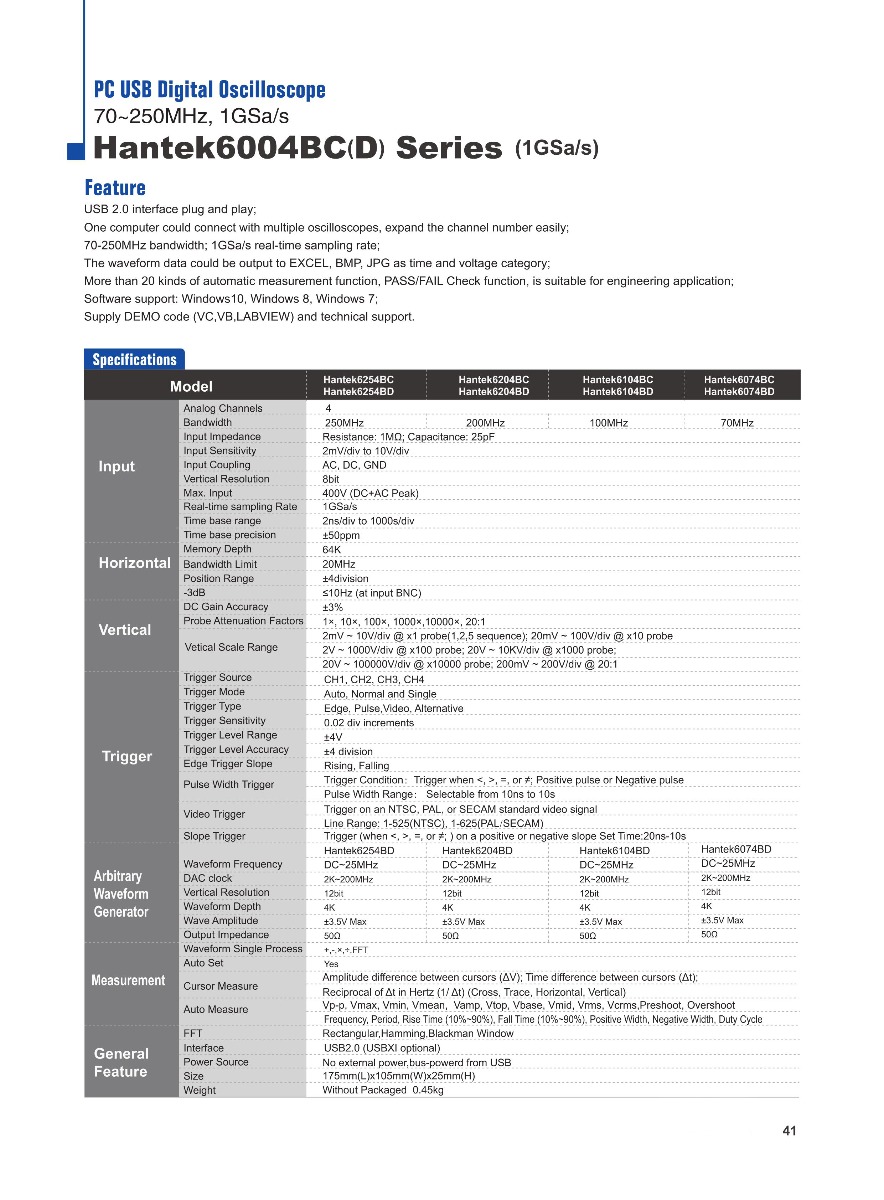

ข้อมูลทางเทคนิค
- แบนด์วิดท์: 70MHz
- ช่องสัญญาณ: 4 ช่อง
- อัตราการสุ่มตัวอย่าง: 1GSa/s
- ความไวอินพุต: 2mV-10V/DIV
- อินเทอร์เฟซ: USB 2.0 (Plug & Play)
- รองรับระบบปฏิบัติการ: Windows 10 / 8 / 7
- การวิเคราะห์ข้อมูลบัส: รองรับการ Trigger และ Decode ข้อมูลบัส Serial
- ฟังก์ชันการวิเคราะห์ทางคณิตศาสตร์: การบวก ลบ คูณ หาร X-Y Display
- การส่งออกข้อมูลคลื่นสัญญาณ: รูปแบบ Excel, BMP, JPG
- รองรับการขยายช่องสัญญาณโดยการเชื่อมต่อออสซิลโลสโคปหลายตัวกับคอมพิวเตอร์เครื่องเดียว
- รองรับการพัฒนาซอฟต์แวร์เพิ่มเติมผ่าน LabView, VB, VC
Hantek 6074BC เป็นออสซิลโลสโคปแบบ USB ที่ เหมาะสำหรับวิศวกร นักพัฒนา และช่างเทคนิค ที่ต้องการเครื่องมือวิเคราะห์สัญญาณ ที่พกพาง่าย ประสิทธิภาพสูง และรองรับการทำงานที่หลากหลาย
Hantek 6074BC ออสซิลโลสโคปแบบต่อคอมพิวเตอร์ 4 ช่อง แบนวิด 70MHz Sampling rate สูงถึง 1GS/s
- The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 70MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying
- Multiple functions: Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, FFT spectrum analyzer and replays function. Serial bus triggering and decode: Bus protocol information can be quickly and intuitively displayed in table form
- The operation interface is similar to benchtop oscilloscope, easy to operate with high cost performance. Good mechanical design with small size which is easy for carrying. The outer case is made by anodised aluminium., with great heat resistance and abrasive resistance with beautiful appearance
- Fit for the portable computers, table PC, and repairing/fixing of production line. Software support: for Windows10, Windows 8, Windows 7. The waveform data could be output to EXCEL, BMP, JPG as time and voltage category. Provide secondary development library DLL and Labview\VB\VC developing examples
- Waveform averaging, reverse, add, subtract, multiply, divide, X-Y display. One computer could connect with multiple oscilloscopes, expand the channel number easily. USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument
